New » Kubota » RTV1140CPX Real Tree® Hardwoods Camouflage UTV
Model Quick Search

Call for Price
(936) 321-6677

2010 Kubota RTV1140CPX Real Tree® Hardwoods Camouflage UTV
Request a Quote Request a Brochure

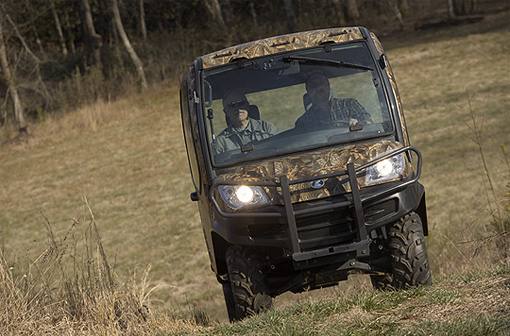

Click here to view full image.
Request a Quote Request a Brochure
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

    Engine
    • Engine make: KUBOTA D1105-E3-UV
    • Engine Type: 3-cylinders, water cooled, 4-cycle, diesel, OHV
    • Displacement: 68.5 ci, (1123 cc)
    • Horsepower: 24.8 hp (18.5 kW) @ 3000 RPM
    • Fuel tank capacity: 7.9 gal. (30 l)
    Drive Train and Transmission
    • Transmission: Variable hydro transmission (VHT)
    • Max. Traveling speed: 25 mph (40 km/h)
    • Drive system: Rear 2WD or 4WD selection
    • Differential lock: Standard; foot operated with mechanical holder
    • Gear selection: Hi-Med-Lo range forward, neutral, reverse
    • Brakes (Front/Rear): Wet-disc brakes
    • Parking brake: Rear wheel, hand lever
    • Steering: Hydrostatic power
    • Suspension (Front/Rear): Independent, Mac-Pherson strut-type/Independent; DeDion axle w/leaf springs and shock absorbers
    Dimensions & Weight
    • Length: 137 in. (3480 mm)
    • Width: 61 in. (1550 mm)
    • Height overall: 78.7 in. (2000 mm)
    • Front tread centers: 45.3 in. (1150 mm)
    • Rear tread centers: 46.5 in. (1180 mm)
    • Wheelbase: 95.1 in. (2415 mm)
    • Ground clearance (front/rear axel): 8.3 in. (210 mm)/7.5 in. (190 mm)
    • Turning diameter: 32.8 ft. (10 m)
    • Max. rolling weight (Towing capacity): 1300 lbs. (590 kg)
    • Payload capacity: 1609 lbs. (730 kg)
    • Weight: 2392 lbs. (1085 kg)
    • Max. rolling weight (Towing capacity) lbs. (kg): 1300 (590)
    • Payload capacity lbs. (kg): 1609 (730)
    Cargo Bed
    • Width x Length x Depth in. (mm): 1ROW:52.0(1320)×53.5(1360)×11.4(290) 2ROWS:52.0(1320)×33.9(860)×11.4(290)
    • Volume cu ft. (m3): 1ROW:18.7(0.53) 2ROWS:11.7(0.33)
    • Bed height (unloaded): 33.5 in. (850 mm)
    • Cargo bed load lbs. (kg): 1ROW:1102(500) 2ROWS:661(300)
    Tires
    • Tire Size (Front): 25×10-12 ATV, 6PLY or 25×10-12 HDWS, 6PLY
    • Tire Size (Rear): 25×11-12 ATV or 6PLY, 25×10-12 HDWS
    Other Features
    • Front guard: Standard
    • Body color: Real Tree® Hardwoods Camouflage
    • Speedometer: Standard
    • Hydraulic bed lift: Standard

    Specifications

    Engine
    Engine Type 3-cylinders, water cooled, 4-cycle, diesel, OHV
    Displacement 68.5 ci, (1123 cc)
    Cooling liquid-cooled
    Chassis
    Front Suspension Independent, Mac-Pherson strut-type
    Front Brakes Wet-disc brakes
    Front Tire 25×10-12 ATV, 6PLY or 25×10-12 HDWS, 6PLY
    Rear Suspension Independent; DeDion axle w/leaf springs and shock absorbers
    Rear Brakes Wet-disc brakes
    Rear Tire 25×11-12 ATV, 6PLY or 25×10-12 HDWS
    Dimensions
    Dry Weight 2392 lbs. (1085 kg)
    Fuel Capacity 7.9 gal. (30 l)
    Wheelbase 95.1 in. (2415 mm)
    Ground Clearance Front: 8.3 in. (210 mm); Rear Axle: 7.5 in. (190 mm)
    Box Capacity 1Row: 1102 lbs. (500 kg); 2Row: 661 lbs. (300 kg)
    Towing Capacity 1300 lbs. (590 kg)
    Transmission
    Transmission Variable hydro transmission (VHT)
    Drive System 2WD w/4WD selection
    General
    Speedometer Standard
    Colors Real Tree® Hardwoods Camouflage

    Compare Models

    		 Print








    Year 2010
    Manufacturer Kubota
    Model RTV1140CPX Real Tree® Hardwoods Camouflage UTV
    Style 4x4
    Chassis
    Front Suspension Independent, Mac-Pherson strut-type
    Front Brakes Wet-disc brakes
    Front Tire 25×10-12 ATV, 6PLY or 25×10-12 HDWS, 6PLY
    Rear Suspension Independent; DeDion axle w/leaf springs and shock absorbers
    Rear Brakes Wet-disc brakes
    Rear Tire 25×11-12 ATV, 6PLY or 25×10-12 HDWS
    Dimensions
    Dry Weight 2392 lbs. (1085 kg)
    Front Travel
    Fuel Capacity 7.9 gal. (30 l)
    Rear Travel
    Wheelbase 95.1 in. (2415 mm)
    Ground Clearance Front: 8.3 in. (210 mm); Rear Axle: 7.5 in. (190 mm)
    Box Capacity 1Row: 1102 lbs. (500 kg); 2Row: 661 lbs. (300 kg)
    Rack Capacity
    Towing Capacity 1300 lbs. (590 kg)
    Engine
    Engine Type 3-cylinders, water cooled, 4-cycle, diesel, OHV
    Displacement 68.5 ci, (1123 cc)
    Bore and Stroke
    Cooling liquid-cooled
    Compression Ratio
    Fuel System
    Ignition
    General
    Speedometer Standard
    Tachometer
    Odometer
    Colors Real Tree® Hardwoods Camouflage
    Warranty
    Transmission
    Transmission Variable hydro transmission (VHT)
    Drive System 2WD w/4WD selection

    Current Promotions

    There are currently no promotions available for this product.
