New » Kubota » RTV1100R Orange
Model Quick Search

Call for Price
(936) 321-6677

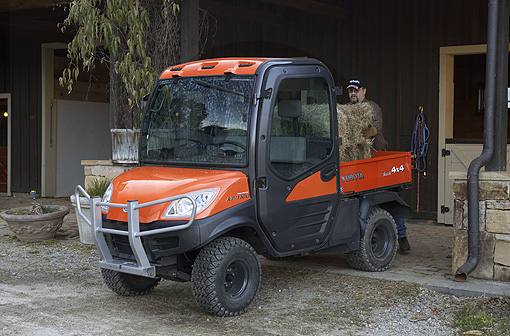

2009 Kubota RTV1100R Orange


Request a Quote Request a Brochure

Request a Quote Request a Brochure
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

Print Brochure

Kubota's heavy-duty, high performance RTV Series utility vehicles give you the power and durability to tackle the toughest tasks on a variety of terrain. From the daily dependability of our workhorse RTV900, to the exclusive, industry-first, air-conditioned comfort, protection and quietness of our factory-cab RTV1100, to the compact, efficient and technologically-advanced performance of our new gas-powered RTV500, there's an RTV model to meet your exact needs.


VHT (Variable Hydro Transmission):
A Kubota exclusive! The RTV1100 high-performance, three-range Variable Hydro Transmission ensures that you have the traction acceleration and power you need to complete even your most heavy-duty tasks.


Powerful Engine:
The 1,123cc RTV1100 boasts the largest horsepower engines of any of our RTV models. With 24.8 HP, the RTV1100 Is a powerfull workhorse - even with the air conditioner running!


Air Cleaner:
Keep your engine running clean with this standard, high capacity 5 in. air cleaner.


Responsive hydrostatic power steering:
Off-road driving requires split-second decision-making. The RTV900 responds quickly. It's the first in its class to be equipped with hydrostatic power steering.


Front suspension:
The MacPherson Strut-type suspension on each of the front wheels - an independent suspension system - maximizes shock absorption as well as minimizes body tilt.


Rear suspension:
On each of the rear wheels, the semi-independent suspension-type DeDion axle, the leaf spring and the shock absorber work together to help you handle heavy loads, even when negotiating rough terrain.


Spacious, dumping cargo bed:
Whether it's a big payload or loads of gear, you'll securely haul either in the extra-large cargo bed. A true hydraulic bed-lift system enables easy dumping by simply operating a single lever. The RTV1100 easily carries a 48 in. pallet


Steel Front Guard:
This stylish and sturdy front guard protects the RTV1100's most vital parts


Air Conditioner and Heater:
The only vehicle of its kind with a standard air conditioner, the RTV1100 knows how to keep you cool. Located under the hood for a lower center of gravity, the air conditioning unit in the RTV1100 is the same one used In our high-end M-Series tractors. The RTV1100 also has a heater, which is ultra-efficient due to efficient ducting and the thermodynamics of the integrated cabin design.


Two-Position Windshield and Door Flow-thru Writ System:
Not hot or cold enough for the heat or air conditioning? Let in some fresh air by utilizing the RTV1100's one-of-a-ling two-position lock. Located on the drivers side door, this ingenious lock allows the door to lock in a slightly open position, called ventilation mode, allowing the air flowing from the front to continue on through the cab and out the door. To complement this, the front windshield easily opens outward to allow air to flow through the bottom and sides. In airtight mode, the door is completely closed and the cab is sealed tightly for efficient air conditioning and healing use.


Curved Surface Glass:
The curved glass on the front and sides of the RTV1100 gives you a wider field of view and also adds to the styling and aerodynamics of the vehicle. The windshield comes equipped with a standard wide- coverage wiper and washer.


Unibody Cab and Chassis Frame:
The unibody cab and chassis frame of the RTV100 ensures a smoother and more stable ride. Moreover, this efficient design equates to lese overall weight yet maintains the strength necessary to qualify It as an OSHA 1928.53 Rollover Protective Structure (ROPS).


Easy Range Shift Assist Mechanism:
We've added a new mechanism to our VHT transmission, which allows you to shift gears more easily by depressing the brake pedal and pulling the shift assist knob.


Interior Rear View Mirror:
A rear view mirror, optional on other models, is now standard equipment on the RTV1100.


A Sunvisor, radio/CD Player, and rear utility screen are all optional features on the RTV1100.


Soft Cloth Seating:
Like a tuck or SUV, the seat is covered with a soft yet durable cloth material.

Large Under seat Storage Area:
Simply lift the seat to access a large and handy storage area.


Battery and Engine Access:
Lift out the storage area tray to gain easy access to the RTV1100's battery and engine.

    Engine
    • Engine make: KUBOTA D1105-E2-UV
    • Engine Type: 3-cylinders, water cooled, 4-cycle, diesel, OHV
    • Displacement: 68.5 ci, (1123 cc)
    • Horsepower: 24.8 hp (18.5 kW) @ 3000 RPM
    • Fuel tank capacity: 7.9 gal. (30 l)
    Drive Train and Transmission
    • Transmission: Variable hydro transmission (VHT)
    • Max. Traveling speed: 25 mph (40 km/h)
    • Drive system: 4WD w/2WD selection
    • Differential lock: Standard; Foot pedal operated with mechanical holder
    • Gear selection: Hi-Med-Lo range forward, neutral, reverse
    • Brakes (Front/Rear): Wet-disc brakes
    • Parking brake: Rear wheel, hand lever
    • Steering: Hydrostatic power
    • Suspension (Front/Rear): Independent, Mac-Pherson strut-type/Independent; DeDion axle w/leaf springs and shock absorbers
    Dimensions & Weight
    • Length: 128.4 in. (3662 mm)
    • Width: 66.5 in. (1688 mm)
    • Height overall: 82.8 in. (2104 mm)
    • Front tread centers: 45.3 in. (1150 mm)
    • Rear tread centers: 46.5 in. (1180 mm)
    • Wheelbase: 77.4 in. (1965 mm)
    • Ground clearance (front/rear axel): 8.1 in. (205 mm)/7.5 in. (190 mm)
    • Turning diameter: 26.2 ft. (8 m)
    • Max. rolling weight (Towing capacity): 1300 lbs. (590 kg)
    • Payload capacity: 1631 lbs. (740 kg)
    • Weight: 2469 lbs. (1120 kg)
    Cargo Bed
    • Width x Length x Depth: 52 in. (1320 mm) X 46.7 in. (1180 mm) X 11.4 in. (290 mm)
    • Volume: 16.0 cu. ft. (0.455 m3)
    • Bed height (unloaded): 32.3 in. (820 mm)
    • Cargo bed load: 1102 lbs. (500 kg)
    Tires
    • Tire Size (Front): 25x10-12 ATV, 6PLY or 25x10-12 HDWS, 6PLY, or 25x10-12 Turf, 6PLY
    • Tire Size (Rear): 25x11-12 ATV, 6PLY or 25x10-12 HDWS, 6PLY, or 25x10-12 Turf, 6PLY
    Other Features
    • Front guard: Standard
    • Sound level (operator ear): 83 db
    • Body color: Orange
    • Speedometer: Standard
    • Hydraulic bed lift: Standard

    Specifications

    Engine
    Engine Type 3-cylinders, water cooled, 4-cycle, diesel, OHV
    Displacement 68.5 ci, (1123 cc)
    Cooling liquid-cooled
    Chassis
    Front Suspension Independent, Mac-Pherson strut-type
    Front Brakes Wet-disc brakes
    Front Tire 25x10-12 ATV, 6PLY or 25x10-12 HDWS, 6PLY, or 25x10-12 Turf, 6PLY
    Rear Suspension Independent; DeDion axle w/leaf springs and shock absorbers
    Rear Brakes Wet-disc brakes
    Rear Tire 25x10-12 ATV, 6PLY or 25x10-12 HDWS, 6PLY, or 25x10-12 Turf, 6PLY
    Dimensions
    Dry Weight 2469 lbs. (1120 kg)
    Fuel Capacity 7.9 gal. (30 l)
    Wheelbase 77.4 in. (1965 mm)
    Ground Clearance Front/Rear axel: 8.1 in. (210 mm)/7.5 in. (190 mm)
    Box Capacity 1102 lbs. (500 kg)
    Towing Capacity 1300 lbs. (590 kg)
    Transmission
    Transmission Variable hydro transmission (VHT)
    Drive System 4WD w/2WD selection
    General
    Speedometer Standard
    Colors Orange

    Compare Models

    Print








    Year 2009
    Manufacturer Kubota
    Model RTV1100R Orange
    Style 4x4
    Chassis
    Front Suspension Independent, Mac-Pherson strut-type
    Front Brakes Wet-disc brakes
    Front Tire 25x10-12 ATV, 6PLY or 25x10-12 HDWS, 6PLY, or 25x10-12 Turf, 6PLY
    Rear Suspension Independent; DeDion axle w/leaf springs and shock absorbers
    Rear Brakes Wet-disc brakes
    Rear Tire 25x10-12 ATV, 6PLY or 25x10-12 HDWS, 6PLY, or 25x10-12 Turf, 6PLY
    Dimensions
    Dry Weight 2469 lbs. (1120 kg)
    Front Travel
    Fuel Capacity 7.9 gal. (30 l)
    Rear Travel
    Wheelbase 77.4 in. (1965 mm)
    Ground Clearance Front/Rear axel: 8.1 in. (210 mm)/7.5 in. (190 mm)
    Box Capacity 1102 lbs. (500 kg)
    Rack Capacity
    Towing Capacity 1300 lbs. (590 kg)
    Engine
    Engine Type 3-cylinders, water cooled, 4-cycle, diesel, OHV
    Displacement 68.5 ci, (1123 cc)
    Bore and Stroke
    Cooling liquid-cooled
    Compression Ratio
    Fuel System
    Ignition
    General
    Speedometer Standard
    Tachometer
    Odometer
    Colors Orange
    Warranty
    Transmission
    Transmission Variable hydro transmission (VHT)
    Drive System 4WD w/2WD selection

    Current Promotions
